Hot Sell Automatic Aluminium Tube Filling Machine For Silicone Glue
Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue
INTRODUCTION OF THE MACHINE
Features
This aluminum tube filling and sealing machine is mainly used for aluminum tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc.
This MIC-L45 AUTO ALUMINUM TUBE FILLING & SEALING MACHINE is pneumatic controlled, with 1 filling head and a heating gun. It has total 16 positions for filling and sealing. And materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.

Advantages
1.Self  tube loaded
2.Efficient and precise
3.Easy to operate and flexible
4.Stainless steel body.


Parameter
Weight450KGFilling Quantity3-200ml
Power220V/50HzDimension1950*800*1850
Motor1.5 KwCapacity40-45 tpm

Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue
Operation Table:
All the filling and sealing movements take place on the table.
Main parts:
a tube loader, a working disk,a filling head,a heating head.......
It is a 12 positions working disk(the number of position could be customized).


Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue
Tube Upload
A tube loader contains a loader and a tunnel. When tubes are put in the loader, they will be conveyed automatically to the working disk by the tunnel.
Working Steps
STEP1: Manually put the tubes into the molds on the disk.
STEP2: Tubes point located by the device (color sensor optional), and filled with materials by the filling head.


Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue

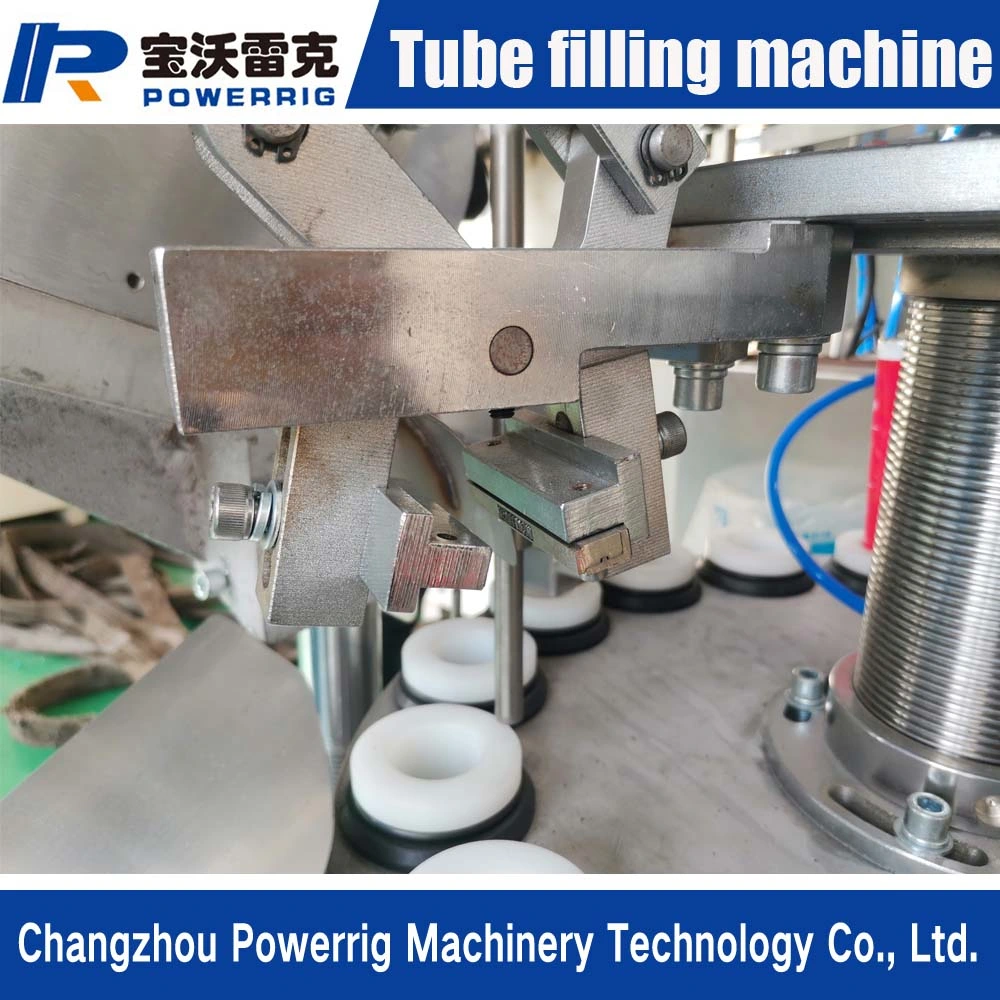

Filling Head

With the help of approaching switches, benchmark pointing and material filling would be accurate. Fill only when there are pipes on the mold. There is no need to worry about waste of materials or fill directly into the mold.

Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue

Stamp sealing code
You can use stamping to print different numbers and letters (Only 1 line 8 letters)at the bottom of the hose, printing numbers and letters can be customized according to customer needs.

Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue
Pressure regulating valve
Filling speed can be adjusted by pressure regulating valve to make filling more stable.

Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue
Hydronic press material machine

Especially add a drum press, for press the RTV silicon, contact with aluminum tube filling and sealing machine , then help the material filling.

PACKING

Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue


Hot Sell Automatic Aluminium Tube Filling Machine for Silicone Glue

Our service

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.

FAQ

Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

Q: My material viscosity is very high , how can you fix it ?

A: For some material we can make heating and mixing hopper to make the material can flow .And according to material viscosity to decide use turnvalve and bottom filling.

Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube need change mold , we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service

Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q:How about the spare parts

 A: After we deal down all the things , we will offer you a spare parts list for your reference.
